AGUA MG100

"The Metal Primer for Merchant Ships"

Stacks Image 128104
Stacks Image 128114
Stacks Image 128117
Stacks Image 128112
Stacks Image 128120

TIME-TESTED & PROVED ONBOARD

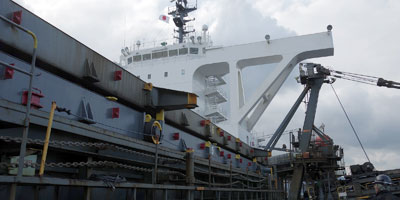

AGUA MG100 (AGUA MARINE GUARD) is an epoxy-resin based metal primer designed for application to rusted steel surfaces in severe conditions. Its efficiency is proved by 30-month long-run onboard tests under "REAL" conditions. Introduced to the market in fall 2016, AGUA MG100 is now used on a variety of vessels, including bulkers, coal/salt/chip carriers and LNG carriers.

UNIQUE MECHANISM TO PREVENT CORROSION

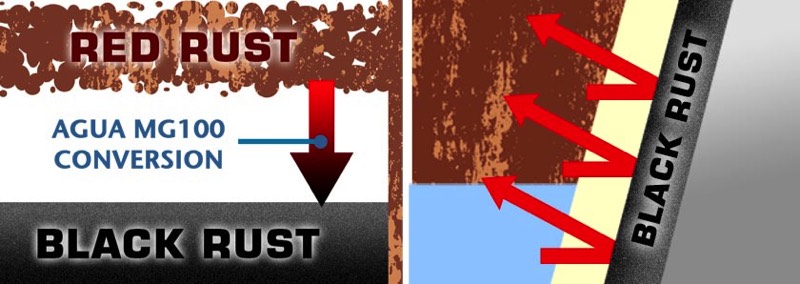

AGUA MG100 converts red rust into a harder and more stable black rust (magnetite) layer and acts as a long-lasted Primer.

Stacks Image 13171

KEY FEATURES

UNRIVALED
PERFORMANCE

Stacks Image 128051

Thanks to its unique formula, AGUA MG100 quickly penetrates into rusted steel to effectively protect the surface from corrosion.

QUICK
& FRIENDLY

Stacks Image 128060

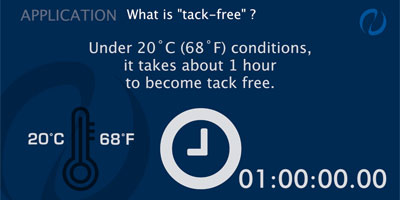

AGUA MG100 takes only 1 hour to dry at 20 degree celsius. You are then free to coat almost any intermediate and final paints at your choice on AGUA MG100 layer.

GREAT
WORK SAVER

Stacks Image 128069

AGUA MG100 is an easy-to-handle one-part product that requires only minimal surface preparation. Ideal for use onboard.

FDA REGULATIONS COMPLIANT FOR USE IN CARGO HOLDS
Stacks Image 128027

AGUA MG100 has been certified by a professional organization as meeting the FDA (United States Food and Drug Administration) safety standard (175.300, for use as a food type VIII ship's hatch paint for ships in direct contact with food), and can be used in the ship cargo hold which may come in direct contact with grain, maize, salt and other foodstuffs.

COMPARISON WITH COMPETITOR PRODUCTS

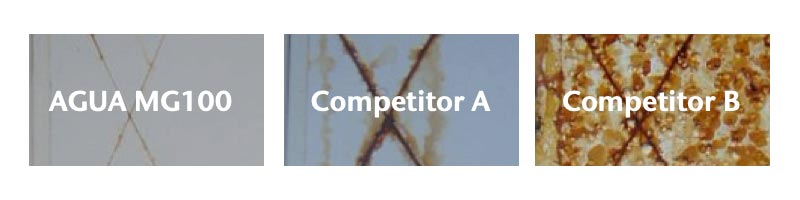

Laboratory Test A

single coat - SPCC in salted water shower x 480 hrs @ 35deg. C 98% RH

Stacks Image 5851

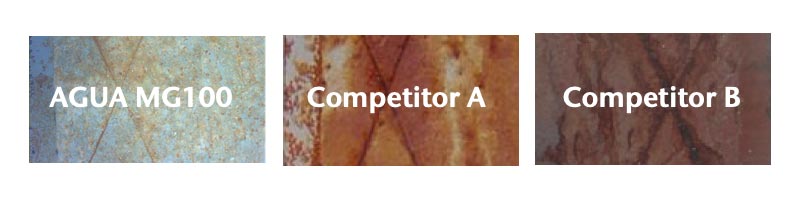

Laboratory Test B

double coat - SPCC in salted water shower x 480 hrs @ 35deg. C

Stacks Image 5805

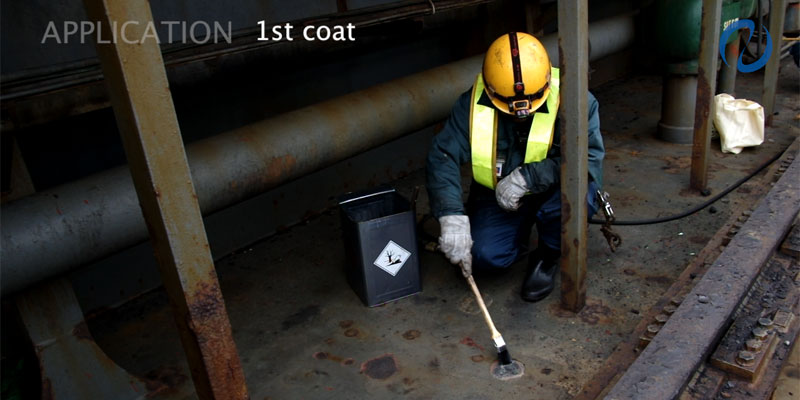

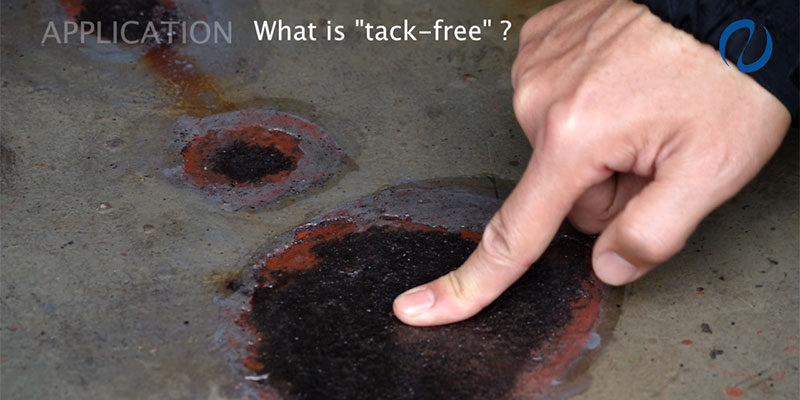

AGUA MG100 Instruction Video

PRODUCT DETAILS

Characteristics :
塗料系統
日本船舶投資促進株式会社
Japan Ship Investment Facilitation Co., Ltd.
Type
Epoxy-resin based rust converting metal primer (one part)
Color
Clear

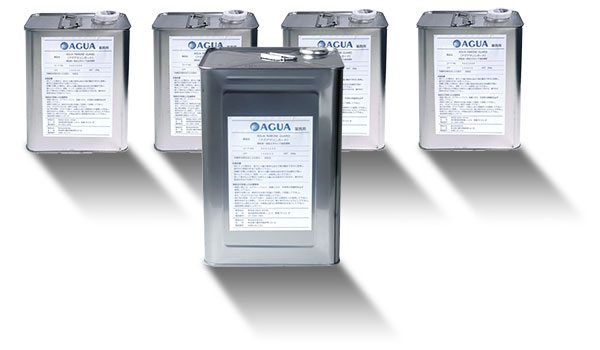

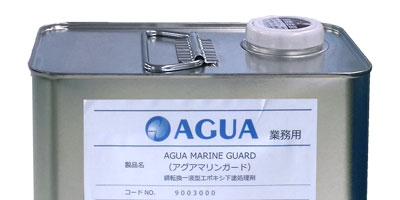

Package
16Kg / 4Kg
Recommended Uses :

Rusted steel surface in heavy duty environments, including ships (deck, cargo hold, ballast tanks, piping etc.), port cargo handling facilities, marine structures, FPSO, oil tanks, forklifts, etc.

Painting Specifications :

Process
Coverage / Description
Average
Consumption (g/㎡)
Dilution (%)
Standard
Thickness
Painting
Interval
Recommended
Method
Brush, Roller or Spray
-
-
-
-
Surface
Preparation

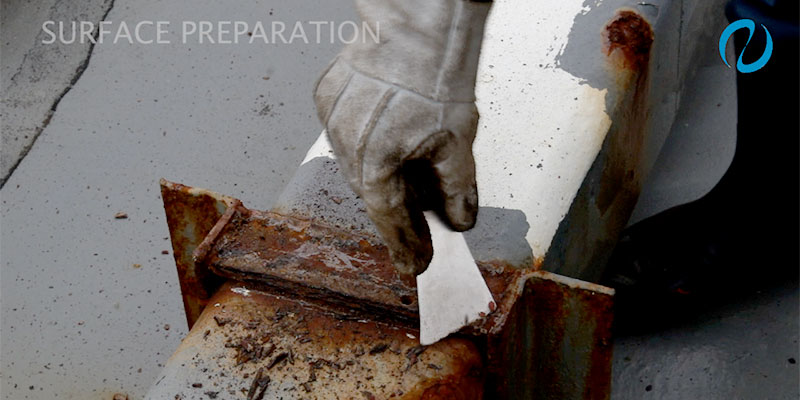

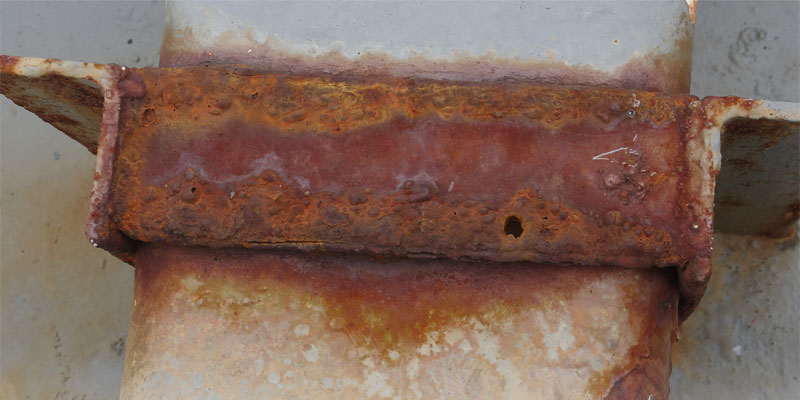

Remove loose rust/coating and oil using a hand scraper or wire brush, or powered tools when/if possible. For details, refer to instruction manual.
-
-
-
-
1st Coat
Approx. 160-200㎡ per 16Kg
80 - 100
None
10-13μm
1 hr @ 20℃
2nd Coat
Approx. 160-200㎡ per 16Kg
80 - 100
None
10-13μm
1 hr @ 20℃

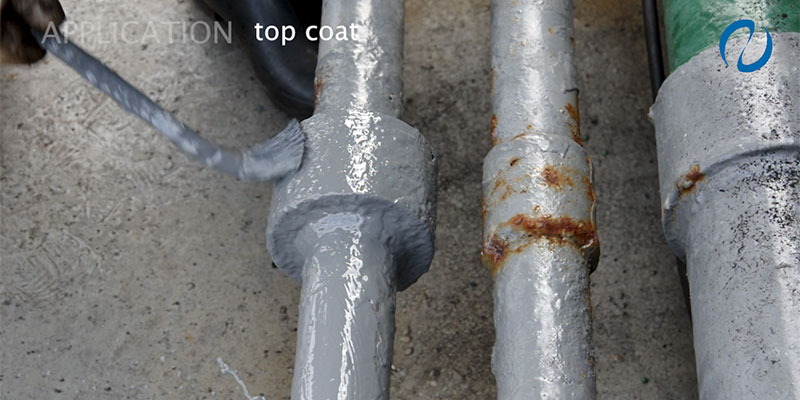

Intermediate / Top coats
acrylic or epoxy based paints at your choice
-
-
-
-
Note :
  • Actual figures may vary, depending on the material and weather conditions.
  • Before using, read carefully the instruction manual and SDS documents.
